Luxman  K-8  Cassette deck


General:

In 1971 Luxman company came with its K-8 Cassette deck.

"Luxman Studio Standard Series K-8 stereo cassette deck"

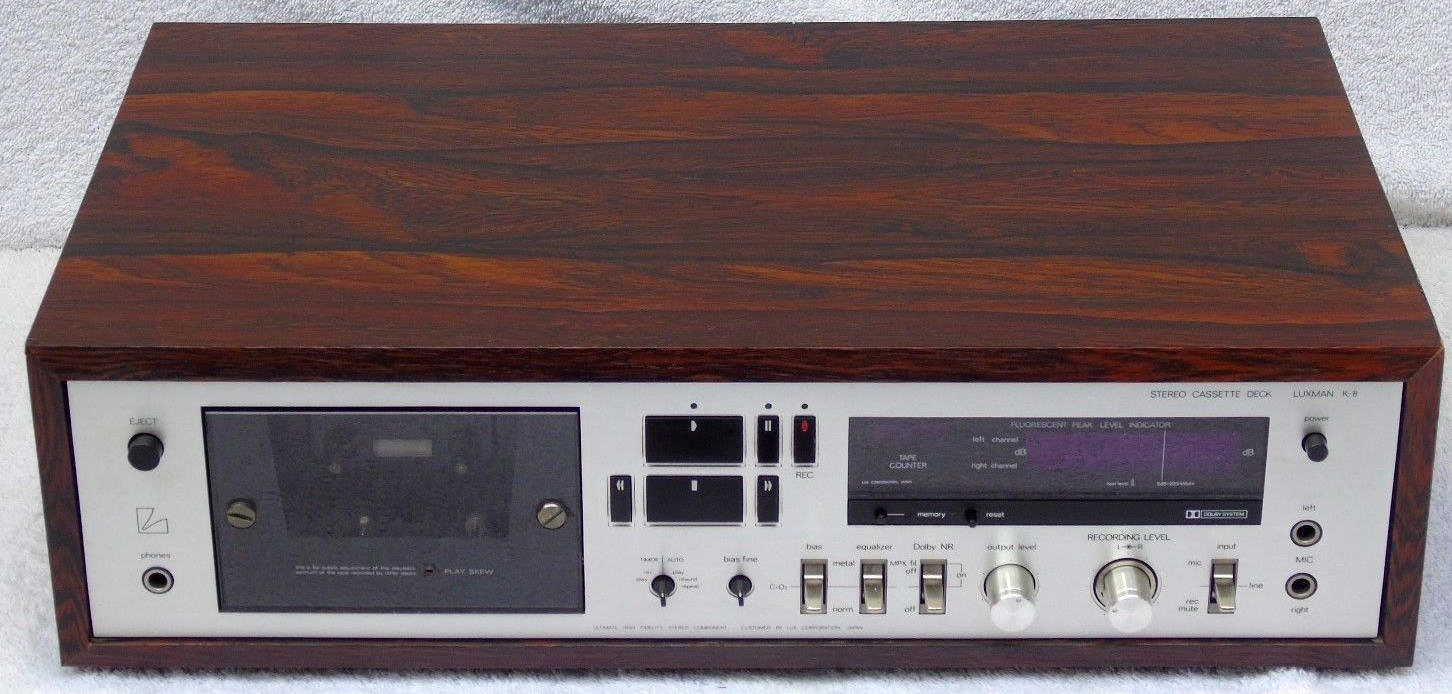

Woodcase ^


Front part photo Luxman K-8  ^

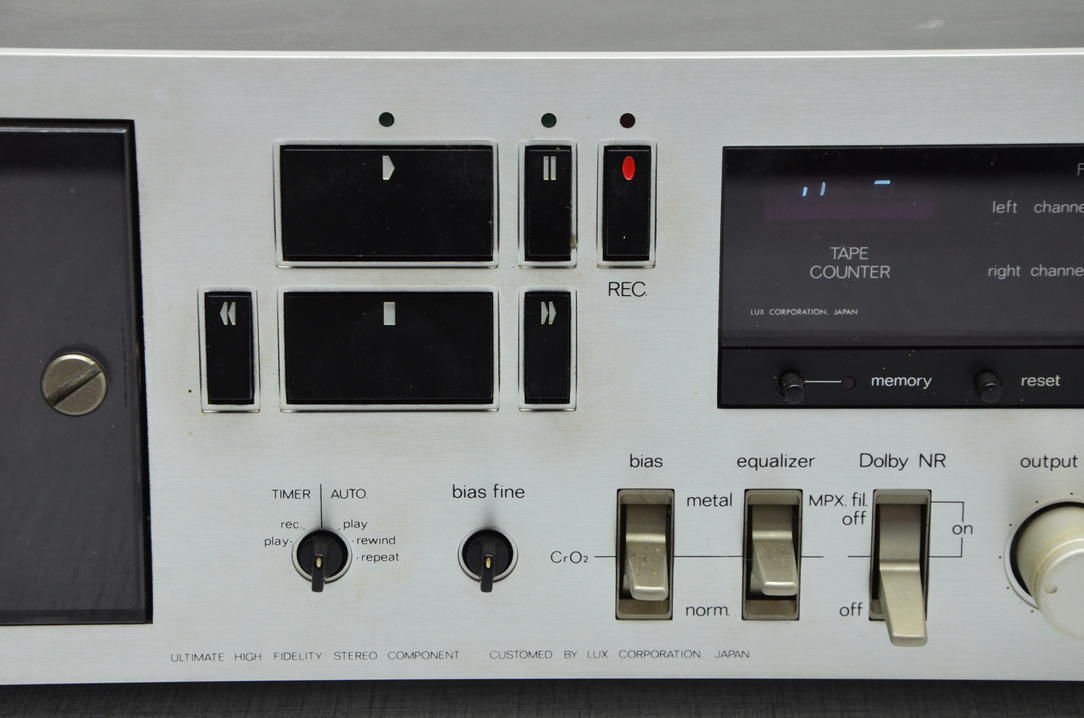

Classic Luxman knobs ^

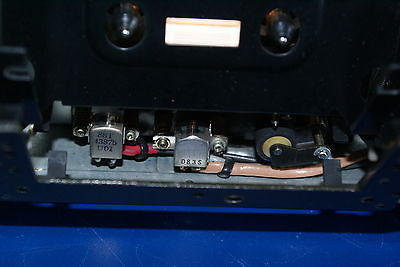

Heads ^



Special futures:

Simple front loading cassette deck with all basic features:

• 2 Heads sendust
• 4 Track / 2 Channel stereo design
• Manual tape type selection
• Stereo headphones jack
• 2 Microphone low-Z jacks L/R
• Output level control
• MPX filter
• Bias fine
• Timer
• Dolby-B Noise Reduction
• Digital VU Meters
• 3 Digıt digital counter







Specifications:

Type: 2-head sendust,

Track System: 4-track, 2-channel stereo

Tape Speed: 4.75 cm/s

Heads: 1 x record/playback, 1 x erase

Motor: DC servo

Tape Type: type I, CrO2, Metal

Noise Reduction: type B

Frequency Response: 30Hz to 17kHz  (Metal tape)

Signal to Noise Ratio: 68dB  (dolby B)

Wow and Flutter: 0.055%

Total Harmonic Distortion: 1.5%

Input: 100mV (line), 0.3mV (mic)

Output: 0.7V (line)

Dimensions: 438 x 285 x 108mm

Weight: 6kg



metering ^



Schematic:

Click here to download the service manual of the Luxman K-8











Modifications:

To get a stable performance the capacitors of the power supply should be checked.
The deck can be set to 240 Volt in Europe.









Sound:

The sound quality is good.
