Luxman WL313 AM/FM tuner






General:

Nice Luxman tuner with good performance, made by Lux in 1967/1968.

The WL313 was conceived to go together with the Luxman SQ1220 integrated amplifier.



^ Front



^ Makes a nice combo with the SQ1220.



Special futures:

Stereo tuner with noise reduction & muting switch, front matches with the SQ1220 amplifier.


Range FM: USA, Japan, Australia and Europe, from 76-90 or 80-95 or 88-108 MHz.

Range AM: standard MW.





User Manual:

Click here to download the service manual PDF format





Schematic:

Construction.

Click here to read in Swedish a review with tests and data of the SQ1220 & WL313 combo.





^ Power supply repair, all electrolytic caps need to be replaced, as all have lost most capacity.



^ aligning the FM frontend section is done.



^ Inside the WL313.



^ Repairing the AF section.



^ Re-alining the Stereo-decoder is a time consuming work.



^ FM-IF section with meter pot.



^ inside bottom view.



^ Back with AM antenna rod.



^ Front of the 80-95 version.



Modifications:

I did not make any modification after the restoration of the WL313.

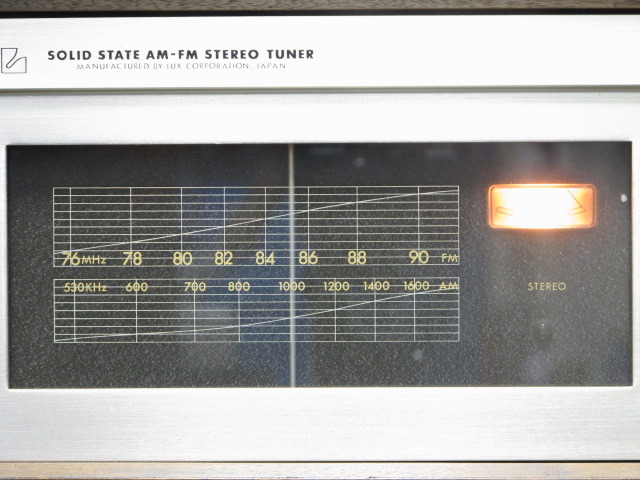

^ S9 FM reception.



Sound:

The sound on FM is good, stereo is ok, noise switch works well, muting is ok,
the AM is not very sensitive, but strong stations are recepted well.
