Nordmende Germany


model Mambo


Nice MW/LW early Nordmende radio from 1958 with 7 transistors: 3 Telefunken glass HF OC600 series and 4 Valvo OC70 series in the LF section. Nice powerfull speaker with great sensivity. Works on 2x4.5V flashlight cells for 9 V supply.



Mambino I


front photo

inside photo

Made in Germany 1962 - 6 Valvo transistors - wooden case - pcb inside, air variable condenser not on pcb - 9 V supply by two 4,5V batterys.



Mambino II


Quite the same as Mambino I, 1963 - 6 Valvo HF and Intermetall LF transistors, the Intermetall ones are rather noisy and needed replacement in the first two LF stages - front is different - it has better sound and reception.

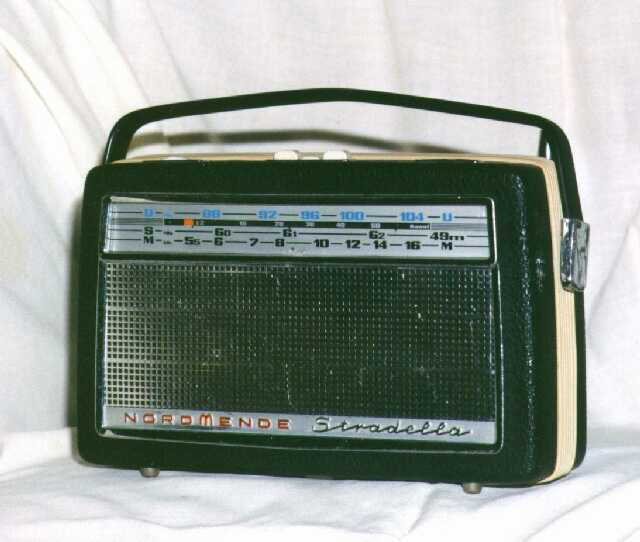

Stradella (K49) type I


Made in 1964 - Electronicly nearly the same as Mambino, exept FM - MW / SW / FM (VHF) with telescope antenna - different scale (K 49) - with SW 49 meter band, no LW -  low sensivity VHF - 9 transistors HF: Valvo, LF: Siemens - 9 V supply.



Cambridge


Made in 1969 - 10 transistor AM/FM/SW radio -



Carrera

picture coming soon

Made in 1968 - 12 transistor AM/FM/SW radio - oval speaker -  final output transistors with air cooling fins for 1Watt stage.



Globetrotter 808


All band reciever of 1971 - covers SW / MW / LW / FM - SW2 spread in 11 bands - SSB BFO - HF ajustable preamp - squelch - bandwidth switch - 2 speakers HF/LF with filter - many external connections - radio plays extremely well and has good overall performance on all bands, FM included - AC/DC 9-12V and 110-220 V -




© PE1MMK Hans Hilberink 1985/18-01-2004.
